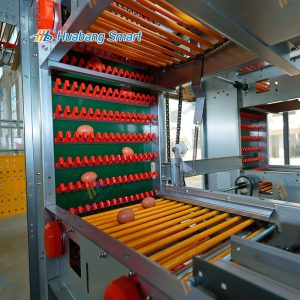

As nossas gaiolas para galinhas poedeiras estão equipadas com um sistema automático de recolha de ovos que dispõe de tecnologia avançada. Usando tecnologia europeia, a linha de coleta de ovos do meio transporta automaticamente os ovos de cada fileira de gaiolas de galinha para a frente do galinheiro, com cada camada de ovos entrando em sua própria caixa de transporte de ovos. Em seguida, eles são concentrados e transportados para a sala de coleta de ovos, onde os ovos são uniformemente transportados para coleta, impedindo que pessoas não autorizadas entrem no galinheiro e reduzindo significativamente a propagação de bactérias dentro dele. Adequado para grandes, médias e pequenas fazendas, melhorando significativamente a automação, eficiência, economia de mão de obra e reduzindo as taxas de quebra de ovos.
Partilhar:

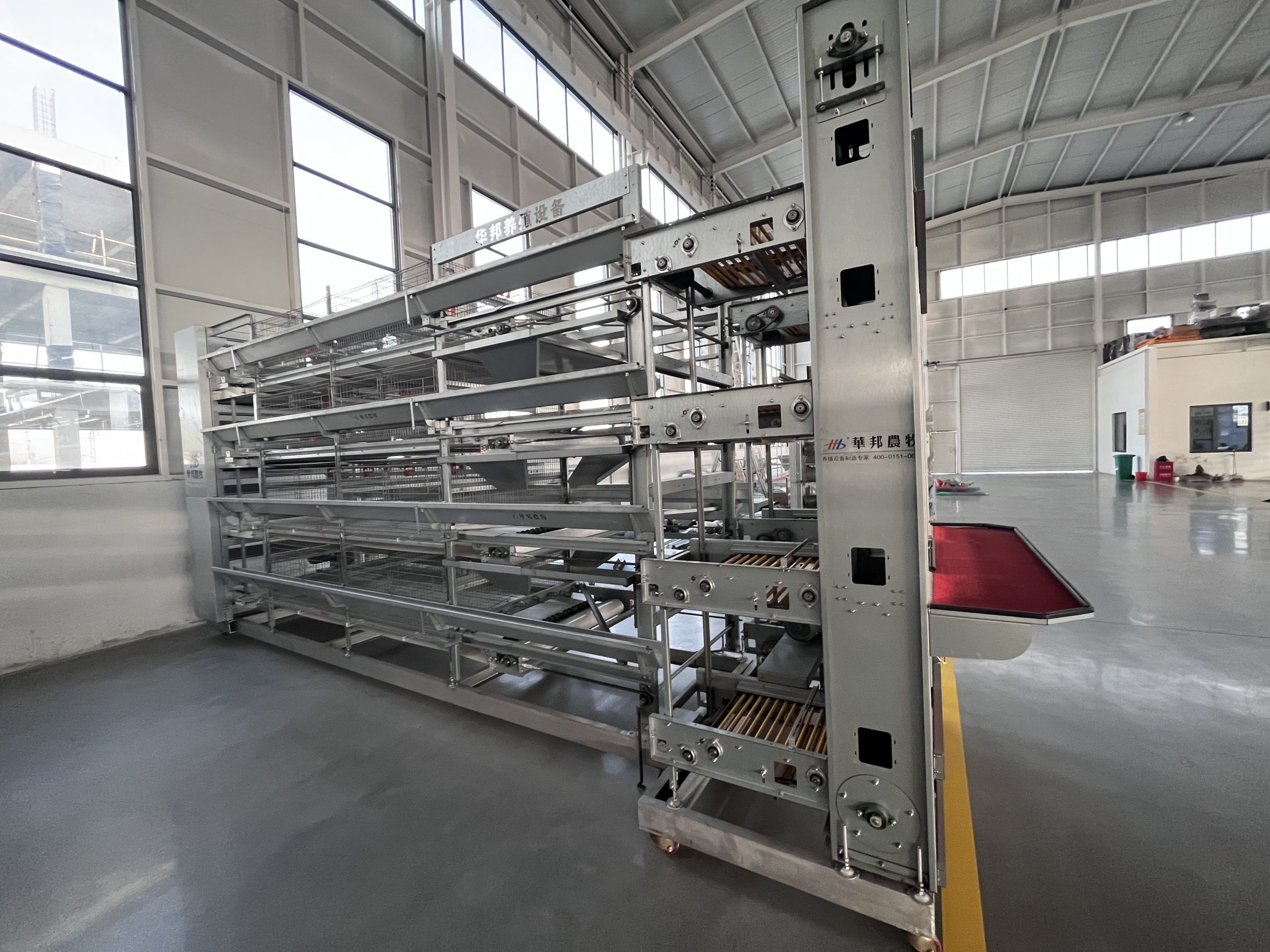

Automatic Layer Chicken Cage System with Integrated Egg Collection
The Smart Solution for High-Efficiency, Heavy-Duty Egg Production
Stop losing profit to manual labor and cage deformation. Our Automatic Layer Chicken Cage System combines the industry’s thickest steel structure with a gentle central egg collection belt. This unique design reduces labor costs by 70%, keeps egg breakage rates under 0.5%, and maximizes airflow for healthier hens.
Whether you need a compact setup for a small farm or a massive layer chicken cage solution for 100,000+ birds, our system scales to your needs with unmatched durability.
Why Choose This System? The Heavy-Duty Advantage
1. Unrivaled Structural Strength (Industry’s Thickest Steel)
Most layer cage systems sag over time, causing egg roll issues and structural failure. Ours is built differently:
Head & Tail Columns: Constructed with 3mm thick steel, providing rock-solid stability for multi-tier stacks.
Body Columns: Built with 2mm thick steel (significantly thicker than the standard 1.5mm), ensuring the automatic layer chicken cage never bends under heavy bird loads.
Result: A deformation-free structure that guarantees consistent egg rolling and a lifespan of 20+ years.
2. Enhanced Ventilation Design (+5cm Mid-Section Lift)
Heat stress reduces egg production. Our engineers have optimized the layer chicken cage geometry for superior airflow:
Exclusive Raised Profile: The middle section of the cage body is strategically raised by 5cm.
Superior Air Circulation: This design creates an extra air channel between tiers, dramatically improving ventilation efficiency and heat dissipation.
Higher Production: Better airflow lowers ammonia levels and keeps hens cool, directly boosting lay rates and feed conversion.
3. Zero-Breakage Egg Transport

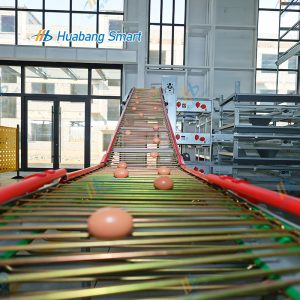

Gentle Handling: High-grade Soft PU Belts cushion every egg from the layer cage to the packing room.
Anti-Static & Food-Grade: Prevents dirt accumulation and ensures clean eggs.
Performance: Proven breakage rate of < 0.5%. No cracks, no collisions.
4. True Automation & Smart Control
PLC Integration: Central control panel with VFD motors allows one-touch operation.
Safety First: Auto-stop sensors prevent jams and protect your flock.
Complete System: Fully compatible with automatic feeding, drinking, and manure removal belts.
5. Premium Corrosion Resistance
Built with Q235 Steel and Hot-Dip Galvanization (275g/m²), our automatic layer chicken cage offers superior rust resistance against harsh cleaning chemicals and ammonia, outlasting standard 200g/m² cages.
Technical Specs at a Glance
Feature | Specification |
Product Type | H-Type Battery Layer Chicken Cage |
Frame Material | Q235 Steel, Hot-Dip Galvanized |
Column Thickness | 3mm (Head/Tail) & 2mm (Body) – Industry’s Thickest |
Ventilation Design | Mid-section raised by 5cm for max airflow |
Layers | 3 to 8 Tiers (Customizable H-Type Design) |
Egg Belt | Food-Grade Soft PU (Anti-static, Anti-Collision) |
Breakage Rate | 0.5% |
Motor Options | SEW, Siemens, or Top Brands |
Capacity | 96 – 160 Birds per Group (High Density) |
Lifespan | 20+ Years |
Full Automatic Supporting System-automatic feeding,drinking, manure cleaning,egg collection and control environment.
Q235 High Quality Steel Materi-al, 275g/㎡,Hot-dip galvanized steel.Stronger equipment and 20 years service life.
15mm High Quality Steel Mesh Bear high weight with long-lasting better elasticity.Two Reinforcing Ribs at Each Bottom Mesh.
The bottom grid has an 8 slope, which allows the eggs to roll gently.
Deep 'V' Feed Trough,Every chicken has adequate feed intake.
Reasonable design and automated management will get better effect and lower maintenance cost
Don’t worry about the construction and management of the chicken farm we will assist you to complete the project efficiently.
